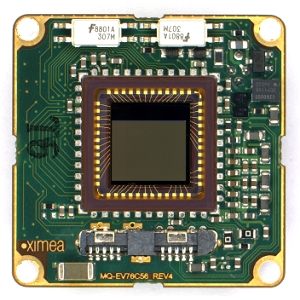

MQ013CG-E2-BRD

Scientific & Industrial Camera by XIMEA GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to XIMEA GmbH.

The MQ013CG-E2-BRD from XIMEA GmbH is a Scientific & Industrial Camera with Mega Pixels 1.3 MP, Frame Rate 60 fps, Wavelength Range 400 to 1000 nm, Bit Depth 8 Bit, 10 Bit. More details for MQ013CG-E2-BRD can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MQ013CG-E2-BRD
  • Manufacturer
    XIMEA GmbH

Applications

  • Application
    In-situ Optical Inspection Camera, Fast Process Capturing, E.g. Golf Club Swings, Intelligent Transportation Systems (its), Open Road Tolling And Traffic Monitoring, Industrial Automation, Machine Vision Facial Recognition, Motion Capture, Automotive Crash Testing, OCR/ OCV, 3D Scanning, Robotic Arms, Material And Life Science Microscopy, Ophthalmology And Retinal Imaging, Medical Imaging, Flat Panel Inspection, Dental, Kiosks, Security, Biometrics
  • Application Industry
    Medical and Healthcare, Outdoor and Environmental Monitoring, Industrial Inspection and Automation, Consumer Electronics, Scientific and Research, Traffic Management and Intelligent Transportation Systems (ITS)

Connections & Interface

  • Data Interface
    USB
  • Peripheral Communications
    Hirose SR38-4R-3S(71)

General Parameters

  • Camera Type
    Area Scan Cameras, Board Cameras
  • Mega Pixels
    1.3 MP
  • Resolution
    1280(H) x 1024(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    60 fps
  • Wavelength Range
    400 to 1000 nm
  • Pixel Size(H x V)
    5.3 x 5.3 µm(H x V)
  • Active Image Area
    6.9 × 5.5 mm
  • Sensor Format
    1/1.8 Inches
  • Dynamic Range
    60 dB
  • Bit Depth
    8 Bit, 10 Bit
  • Sensor Configurations
    Color
  • Cooling Method
    Uncooled
  • Pixel Binning
    1x1, 2x2
  • Pixels
    1.3 MP
  • ADC Resolution
    8 Bit to 10 Bit
  • Chrome
    Color
  • Power Consumption
    0.9 W
  • Optical Diagonal
    8.7 mm
  • Sensor Model Number
    EV76C560

Physical Properties

  • Dimension
    26 x 26 mm
  • Weight
    4 grams

Temperature

  • Operating Temperature
    10 to 25 Degree C
