EPR-XX-YY Series

Single-Photon Source by QCi

Note: Your Quotation Request will be directed to QCi.

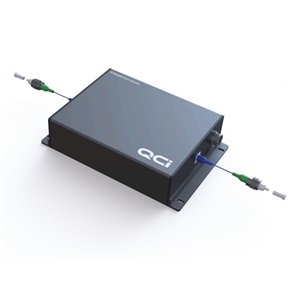

The EPR-XX-YY Series from QCi are Single-Photon Sources that operate at a wavelength of 1534.3 nm - 1566.4 nm. They have a generation rate of 5 million pairs/1μW/s and coincidence-to-accidental count (CAR) of 180. These entangled-photon sources use a fiber-coupled periodically poled lithium niobate (PPLN) crystal to generate broadband entangled photon pairs through spontaneous parametric down-conversion (SPDC). They include a 775 nm laser pump source and are available in a compact module that measures 150 mm x 100 mm x 35 mm. These single-photon sources are ideal for quantum key distribution, quantum authentication, quantum metrology, quantum networking, time synchronization systems, fundamental physics studies, and telecom applications.

Product Specifications

Product Details

  • Part Number
    EPR-XX-YY Series
  • Manufacturer
    QCi
  • Description
    1534.3 nm - 1566.4 nm, Single-Photon Source for Quantum Metrology Applications

Applications

  • Application
    Quantum key distribution, Quantum Auhentication, Quantum Metrology, Quantum Networking, Time Synchronization System, Fundamental Physics Studies, Telecom

General Parameters

  • Photon Polarization
    Tunable
  • Crystal Material
    Lithium niobate (LiNbO3)
  • Operating Wavelength
    1534.3 to 1566.4 nm
  • Type
    Spontaneous Pair Sources
  • Photon Pair Generation
    60 Millions pairs/sec.
  • Single-Photon Purity
    0.1%
  • Source Brightness
    5 million pairs/1 µW/s(pair-Generation Rate)

Temperature

  • Operating Temperature
    15 to 55 Degree C

Technical Documents

Click to view more product details on manufacturer's website
