CONIR-LASE-2k2k

Spatial Light Modulator by Camoptics
Request Quote

Note: Your Quotation Request will be directed to Camoptics.

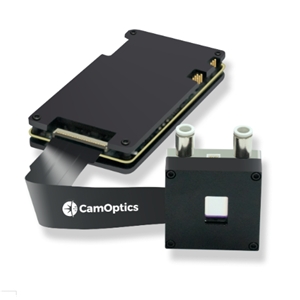

The CONIR-LASE-2k2k from Camoptics is a Spatial Light Modulator with Phase Range 2π, Wavelength Range 450 to 700 nm, 1000 to 1100 nm, 1500 to 1625 nm. More details for CONIR-LASE-2k2k can be seen below.

Product Specifications

Product Details

  • Part Number
    CONIR-LASE-2k2k
  • Manufacturer
    Camoptics

General Parameters

  • Phase Range
    2π
  • Configuration
    Reflective
  • Wavelength Range
    450 to 700 nm, 1000 to 1100 nm, 1500 to 1625 nm
  • Fill Factor
    88%
  • Color / Bit Depth
    8 Bit
  • Technology
    Liquid-Crystal (LC) SLMs
  • Grey Scale/Steps
    256 steps
  • Pixel Size
    6.4 µm
  • Resolution
    2048 (H) x 2048 (V)
  • Zero-Order Diffraction Efficiency
    >85%

Environmental Conditions

  • Operating Temperature
    10 to 60 Degree C
  • Storage Temperature
    0 to 60 Degree C
Click to view more product details on manufacturer's website
