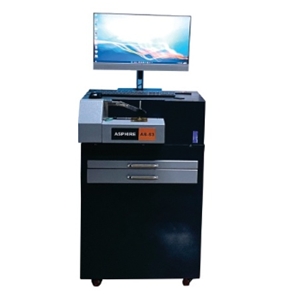

AS-S3

Spectrometer by Asphire Spectro
2 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Asphire Spectro.

The AS-S3 from Asphire Spectro is a Spectrometer with Wavelength Range 115 to 800 nm. More details for AS-S3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AS-S3
  • Manufacturer
    Asphire Spectro
  • Description
    115 to 800 nm Optical Emission Spectrometer with 330 mm Height

Applications

  • Applications
    Steel Production, Aerospace, Automotive, and Scrap Metal Industries to ensure that Material Composition meets Specifications

General Parameters

  • Measuring Techniques
    UV Spectroscopy, VIS Spectroscopy, NIR Spectroscopy
  • Spectrometer Type
    Benchtop, Tabletop
  • Wavelength Range
    115 to 800 nm
  • Spectrum Band
    UV-VIS-NIR
  • Grating :
    1800 grooves/mm, 2400 grooves/mm, 3600 grooves/mm
  • Image Sensor
    CCD, CMOS
  • Input Focal length
    300 mm, 500 mm, 750 mm
  • Output Focal length
    300 mm, 500 mm, 750 mm
  • Relative Humidity
    <80%

Temperature

  • Operating Temperature
    18 to 28 Degree C

Physical Properties

  • Height
    330 mm
  • Weight
    50 kg
  • Dimension
    640 x 620 x 330 mm (L x W x H)
