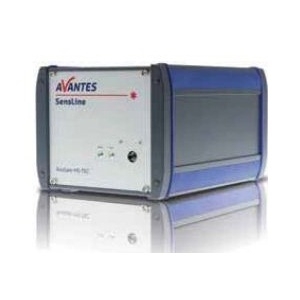

AvaSpec-HS1024x58TEC

Spectrometer by Avantes
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Avantes.

The AvaSpec-HS1024x58TEC from Avantes is a Spectrometer with Wavelength Range 200 to 1160nm, Spectral Resolution 1.2 to 20 nm. More details for AvaSpec-HS1024x58TEC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AvaSpec-HS1024x58TEC
  • Manufacturer
    Avantes
  • Description
    High-sensitivity Fiber-optic Spectrometers

Applications

  • Applications
    Suitable for measuring low light, fluorescence and UV

Connections & Interface

  • Connector
    SMA
  • Interface
    USB 2.0 high speed, 480 Mbps RS-232, 115.200 bps

General Parameters

  • Measuring Techniques
    UV
  • Spectrometer Type
    Modular
  • Wavelength Range
    200 to 1160nm
  • Spectral Resolution
    1.2 to 20 nm
  • Spectrum Band
    UV
  • A/D Resolution
    Digitilizer: 16 bit, 250 KHz Band
  • Integration Time
    5.22 ms - 600 sec
  • Pixels
    1024x58 pixels
  • Aperture(f-number)
    f/2.27
  • Noise Ratio
    1000:1
  • Power Requirements
    External Power Supply: 250 mA
  • Quantum Efficiency
    80, 90%
  • Sample Speed
    5.22 ms / scan
  • Spectral Irradiance Sensitivity
    850,000 counts/µW

Physical Properties

  • Weight
    3.9 kg
  • Dimension
    245 x 175 x 140 mm
