AvaSpec-NIR256-2.5-HSC

Spectrometer by Avantes

Note: Your Quotation Request will be directed to Avantes.

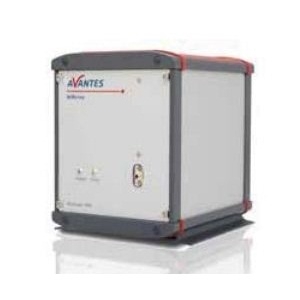

The AvaSpec-NIR256-2.5-HSC from Avantes is a Spectrometer with Wavelength Range 1000 to 2500 nm, Spectral Resolution 4.4 to 85.0 nm. More details for AvaSpec-NIR256-2.5-HSC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AvaSpec-NIR256-2.5-HSC
  • Manufacturer
    Avantes
  • Description
    1000 to 2500 nm, New High Sensitivity Compact NIR Spectrometers

Connections & Interface

  • Interface
    USB 2.0 high speed, 480 Mbps RS-232, 115,200 bps

General Parameters

  • Measuring Techniques
    NIR
  • Spectrometer Type
    Modular
  • Wavelength Range
    1000 to 2500 nm
  • Spectral Resolution
    4.4 to 85.0 nm
  • Spectrum Band
    NIR
  • A/D Resolution
    Digitilizer: 16 bit, 500 kHz Band
  • Integration Time
    10 µs - 5 ms
  • Pixels
    256 pixels
  • Pixels Size
    50 x 250 µm
  • Noise Ratio
    1500:1
  • Power Requirements
    External Power Supply: 250 mA
  • Sample Speed
    0.54 ms / scan
  • Spectral Irradiance Sensitivity
    70,000 counts / µW

Physical Properties

  • Weight
    3.5 kg
  • Dimension
    185 x 145 x 185 mm
