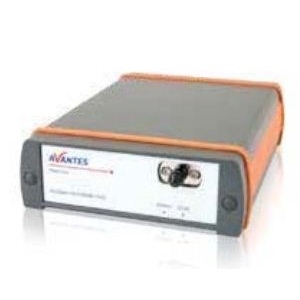

AvaSpec-ULS2048L-EVO

Spectrometer by Avantes
45 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Avantes.

The AvaSpec-ULS2048L-EVO from Avantes is a Spectrometer with Wavelength Range 200 to 1100 nm, Spectral Resolution 0.06 to 20 nm. More details for AvaSpec-ULS2048L-EVO can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AvaSpec-ULS2048L-EVO
  • Manufacturer
    Avantes

Connections & Interface

  • Interface
    USB 3.0 high-speed, 5 Gbps Gigabit Ethernet 1 Gbps

General Parameters

  • Measuring Techniques
    UV
  • Spectrometer Type
    Modular, Portable
  • Wavelength Range
    200 to 1100 nm
  • Spectral Resolution
    0.06 to 20 nm
  • Spectrum Band
    UV
  • A/D Resolution
    Digitilizer: 16-bit, 2 MHz Band
  • Integration Time
    1.11 ms - 10 minutes
  • Pixels
    2048 pixels
  • Noise Ratio
    300:1
  • Power Requirements
    External Power Supply: 250 mA
  • Sample Speed
    1.1 ms /scan
  • Spectral Irradiance Sensitivity
    470,000 counts/µW

Physical Properties

  • Weight
    1135 grams
  • Dimension
    177 x 127 x 44,5 mm
