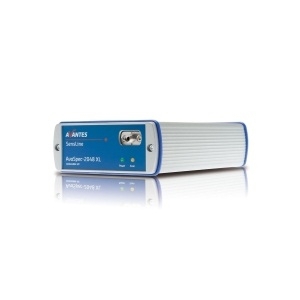

AvaSpec-ULS2048x64

Spectrometer by Avantes
45 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Avantes.

The AvaSpec-ULS2048x64 from Avantes is a Spectrometer with Wavelength Range 200 to 1160nm, Spectral Resolution 0.09 to 20 nm. More details for AvaSpec-ULS2048x64 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AvaSpec-ULS2048x64
  • Manufacturer
    Avantes

Applications

  • Applications
    deep-UV measurements

Connections & Interface

  • Connector
    SMA or FC, PC
  • Interface
    USB 2.0 high speed, 480 Mbps RS-232, 115.200 bps

General Parameters

  • Measuring Techniques
    UV
  • Spectrometer Type
    Modular, Portable
  • Wavelength Range
    200 to 1160nm
  • Spectral Resolution
    0.09 to 20 nm
  • Spectrum Band
    UV
  • A/D Resolution
    Digitilizer: 16 bit, 1.33 MHz Band
  • Integration Time
    1.82 ms - 60 sec
  • Pixels
    2048x16 pixels
  • Noise Ratio
    450:1
  • Power Requirements
    External Power Supply: 250 mA
  • Sample Speed
    1.82 ms / scan
  • Spectral Irradiance Sensitivity
    250,000 counts/µw

Physical Properties

  • Weight
    855 grams
  • Dimension
    175 x 110 x 44 mm
