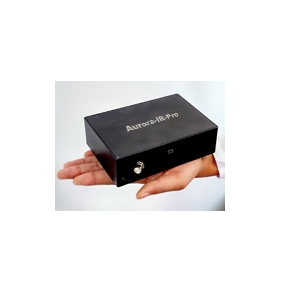

Aurora-IR-Pro

Spectrometer by CNI Laser
18 more products from this company
Request Quote

Note: Your Quotation Request will be directed to CNI Laser.

The Aurora-IR-Pro from CNI Laser is a Spectrometer with Wavelength Range 950 to 1200 nm, Spectral Resolution <0.7 nm. More details for Aurora-IR-Pro can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Aurora-IR-Pro
  • Manufacturer
    CNI Laser
  • Description
    950 to 1200 nm wavelength, NIR spectrometer for NIR Spectroscopy with <0.7 nm spectral resolution

Applications

  • Applications
    Laser spectral analysis, Film thickness measurement, Chemical research, Reflectivity/transmittance measurement, Biological cell analysis

Connections & Interface

  • Fiber optic connector
    SMA905

General Parameters

  • Measuring Techniques
    NIR Spectroscopy
  • Spectrometer Type
    Handheld
  • Wavelength Range
    950 to 1200 nm
  • Spectral Resolution
    <0.7 nm
  • Spectrum Band
    NIR
  • Integration Time
    4 ms to 10 s
  • Pixels
    3648 pixels
  • Aperture(f-number)
    f/4
  • Entrance Slit
    25 to 100 µm (Entrance Aperture)
  • Pixels Size
    8 x 200 µm
  • Grating :
    600 lines/mm
  • Input Focal length
    101.6 mm
  • Noise Ratio
    300:1

Physical Properties

  • Weight
    840 g
  • Dimension
    149 x 105 x 46 mm
Click to view more product details on manufacturer's website
