Mic-R-Sys405

Spectrometer by CNI Laser
18 more products from this company
Request Quote

Note: Your Quotation Request will be directed to CNI Laser.

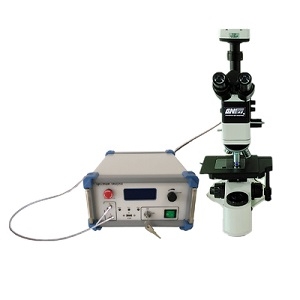

The Mic-R-Sys405 from CNI Laser is a Spectrometer with Wavelength Range 405 to 500 nm, Spectral Resolution 8 to 24 cm-1. More details for Mic-R-Sys405 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Mic-R-Sys405
  • Manufacturer
    CNI Laser
  • Description
    405 to 500 nm wavelength, VIS spectrometer for Raman Spectroscopy with 8 to 24 cm-1 spectral resolution

Connections & Interface

  • Interface
    USB 2.0, USB 1.1

General Parameters

  • Measuring Techniques
    Raman Spectroscopy
  • Spectrometer Type
    Benchtop
  • Wavelength Range
    405 to 500 nm
  • Spectral Resolution
    8 to 24 cm-1
  • Spectrum Band
    VIS
  • Integration Time
    17 ms to 10 s
  • Pixels
    2048 pixels
  • Pixels Size
    14 x 14 um
  • Input Focal length
    7.5 mm
  • Laser Output power
    1 to 500 mW
  • Noise Ratio
    1000:1
  • Operating System
    Windows XP, Windows 7
  • Supply Voltage
    5 VDC
  • Wavelength accuracy
    ±0.5 nm

Temperature

  • Operating Temperature
    0 to 60 Degree C

Physical Properties

  • Weight
    1000 g
  • Dimension
    149 x 109 x 50 mm
