sph xs1

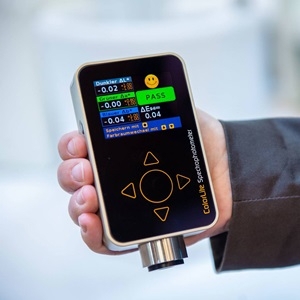

Spectrometer by ColorLite
3 more products from this company
Request Quote

Note: Your Quotation Request will be directed to ColorLite.

The sph xs1 from ColorLite is a Spectrometer with Wavelength Range 400 to 700 nm, Spectral Resolution <10 nm. More details for sph xs1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    sph xs1
  • Manufacturer
    ColorLite
  • Description
    400 to 700 nm Portable Spectrophotometer with <10 nm Resolution

Applications

  • Applications
    Colour measurement and registration of goods intake and goods output according to DIN EN ISO 9000 standard, Objective quality control of colours within a production, Colour difference measurement to reference colours stored on the device

Connections & Interface

  • Interface
    USB 2.0, WiFi

General Parameters

  • Measuring Techniques
    VIS Spectroscopy, NIR Spectroscopy
  • Spectrometer Type
    Portable
  • Wavelength Range
    400 to 700 nm
  • Spectral Resolution
    <10 nm
  • Spectrum Band
    VIS-NIR
  • A/D Resolution
    16 bit
  • Pixels
    320 x 240 Pixels
  • Scan Rate
    <1 s (Time)
  • Wavelength Reproducibility
    <0.03 ?E (Repeatability)

Temperature

  • Operating Temperature
    15 to 45 Degree C

Physical Properties

  • Weight
    270 g
  • Dimension
    120 x 70 x 32 mm (Device with battery)
Click to view more product details on manufacturer's website
