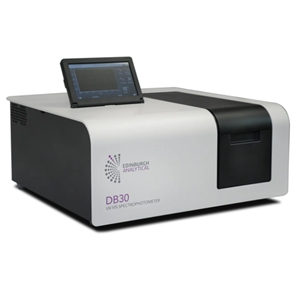

DB30

Spectrometer by Edinburgh Instruments
8 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Edinburgh Instruments.

The DB30 from Edinburgh Instruments is a Spectrometer with Wavelength Range 190 to 1100 nm, Spectral Resolution 0.5 nm, 1 nm, 1.5 nm, 2 nm, 4 nm (Bandwidth). More details for DB30 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DB30
  • Manufacturer
    Edinburgh Instruments
  • Description
    190 to 1100 nm Double Beam UV-VIS Spectrophotometer with Benchtop Type

Applications

  • Applications
    Analytical, Research, and Pharmaceutical Industry Applications

Connections & Interface

  • Interface
    USB

General Parameters

  • Measuring Techniques
    UV Spectroscopy , VIS Spectroscopy
  • Spectrometer Type
    Benchtop
  • Wavelength Range
    190 to 1100 nm
  • Spectral Resolution
    0.5 nm, 1 nm, 1.5 nm, 2 nm, 4 nm (Bandwidth)
  • Spectrum Band
    UV-VIS
  • Stray Light :
    <1% (198 nm KCl), <0.05% (220 nm NaI, 340 nm NaNO2)
  • Detector
    Silicon photodiode
  • Operating System
    Touchscreen operation, PC-controlled software or CFR compliant PC-controlled software
  • Scan Rate
    10 nm/min, 100 nm/min, 200 nm/min, 400 nm/min, 800 nm/min, 1200 nm/min, 2400 nm/min, 3600 nm/min, 6000 nm/min
  • Wavelength accuracy
    ±0.1 nm, ±0.25 nm
  • Wavelength Reproducibility
    <0.1 nm (Repeatability)

Temperature

  • Operating Temperature
    10 to 35 Degree C

Physical Properties

  • Weight
    20 kg
  • Dimension
    500 x 475 x 250 mm (W x D x H)
