FE30

Spectrometer by Edinburgh Instruments
8 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Edinburgh Instruments.

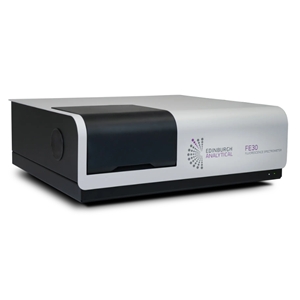

The FE30 from Edinburgh Instruments is a Spectrometer with Wavelength Range 200 to 900 nm, Spectral Resolution 1 nm, 2.5 nm, 5 nm, 10 nm, 20 nm (Bandwidth). More details for FE30 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FE30
  • Manufacturer
    Edinburgh Instruments
  • Description
    200 to 900 nm Fluorescence Spectrometer with Benchtop Type

Applications

  • Applications
    Anisotropy

General Parameters

  • Measuring Techniques
    UV Spectroscopy , VIS Spectroscopy, Fluorescence Spectroscopy
  • Spectrometer Type
    Benchtop
  • Wavelength Range
    200 to 900 nm
  • Spectral Resolution
    1 nm, 2.5 nm, 5 nm, 10 nm, 20 nm (Bandwidth)
  • Spectrum Band
    UV-VIS
  • Detector
    Photomultiplier tube R928
  • Noise Ratio
    20000:1 (RMS-BG)
  • Operating System
    Spectracle® PC-controlled software
  • Scan Rate
    30 nm/min, 60 nm/min, 240 nm/min, 600 nm/min, 1200 nm/min, 2400 nm/min, 8000 nm/min, 12000 nm/min, 30000 nm/min, 60000 nm/min
  • Wavelength accuracy
    ±1.5 nm
  • Wavelength Reproducibility
    <1 nm (Repeatability)

Temperature

  • Operating Temperature
    10 to 35 Degree C

Physical Properties

  • Weight
    55 kg
  • Dimension
    247 x 215 x 172 mm (Sample), 660 x 600 x 250 mm (Instrument) (W x D x H)

Technical Documents
Click to view more product details on manufacturer's website
