GS-1163

Spectrometer by Gamma Scientific

Note: Your Quotation Request will be directed to Gamma Scientific.

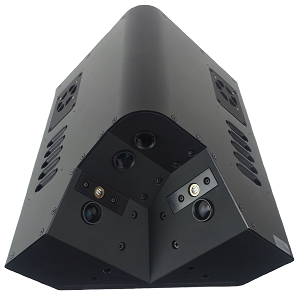

The GS-1163 from Gamma Scientific is a Multi-View Angle Spectrometer that operates from 380 to 780 nm. It can simultaneously perform color and luminescence measurements at three different angles (-60, 0 & 60 degrees). This 16-bit spectrometer has a luminescence measurement range from 0.005 to 5000 cd/m2 and a color measurement range from 0.01 to 5000 cd/m2. It has an integrated flicker sensor that has a measurement range from 5 to 5000 cd/m2 with an adjustable sampling rate of 100k samples/sec. This spectrometer also features a mechanical and electronic shutter that can perform single or continuous capture and it has an in-built laser positioning system.

The GS-1163 can be operated with either a USB 2.0 interface for high-speed devices or with an RS-232 interface for Windows/Mac OS X-compatible PCs and embedded devices using the SCPI command. It can measure luminance, CIE 1931 x, y, CIE 1976 u, v, CIE 1931 XYZ, peak and dominant wavelength, SPD and CCT, Max/Min, Average, RMS, Frequency, JEITA, VESA, Flicker Percentage (IES), and Flicker Index (IES) parameters. The spectrometer is available in a module that measures 240.0 x 216.5 x 136.3 mm and is ideal to perform true spectral measurements for high color saturation and wide color gamut OLED, micro-LED, and quantum dot displays.

Product Specifications View similar products

Product Details

  • Part Number
    GS-1163
  • Manufacturer
    Gamma Scientific
  • Description
    Multi-View Angle Spectrometer from 380 to 780 nm

Connections & Interface

  • Interface
    USB, RS-232, USB 2.0, SCPI

General Parameters

  • Measuring Techniques
    Color Measurement
  • Spectrometer Type
    Benchtop
  • Wavelength Range
    380 to 780 nm
  • Spectrum Band
    UV to IR
  • Integration Time
    100 µs to 5000 ms
  • Stray Light
    -25 dB
  • Image Sensor
    CMOS Linear Image Sensor
  • Operating System
    Windows and MAC OSX
  • Sample Speed
    100 k samples/sec
  • Wavelength Reproducibility
    ± 1 nm
  • Note
    Numbers of Angles: 3 angles, -60/0/60 degrees, Display Range: 0.005 to 5000 cd/m2, Digital Resolution: 16 bits

Physical Properties

  • Weight
    3.8 ±0.2 kg
  • Dimension
    240 x 216.5 x 136.3 mm (H x W x D)
