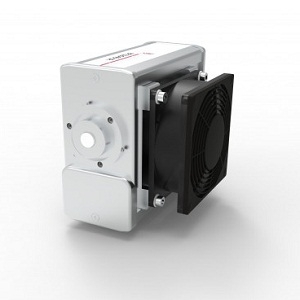

BTS2048-IR

Spectrometer by Gigahertz-Optik
5 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Gigahertz-Optik.

The BTS2048-IR from Gigahertz-Optik is a Spectrometer with Wavelength Range 950 to 2150 nm, Spectral Resolution 9 nm. More details for BTS2048-IR can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BTS2048-IR
  • Manufacturer
    Gigahertz-Optik
  • Description
    950 to 2150 nm wavelength, NIR spectroradiometer for Irradiance, NIR Spectroscopy

Applications

  • Applications
    R&D Applications and for The Integration in Testing Systems

Connections & Interface

  • Interface
    USB 2.0, Ethernet, RS232, RS485

General Parameters

  • Measuring Techniques
    Irradiance, NIR Spectroscopy
  • Spectrometer Type
    Tripod Base
  • Wavelength Range
    950 to 2150 nm
  • Spectral Resolution
    9 nm
  • Spectrum Band
    NIR
  • A/D Resolution
    16 Bit
  • Integration Time
    10 µs to 20 s
  • Pixels
    512 pixels
  • Detector
    InGaAs
  • Dynamic Range
    8 Magnitudes
  • Noise Ratio
    5000:1
  • Supply Voltage
    5 VDC
  • Trigger Modes
    Rising/falling edge
  • Wavelength accuracy
    ±1 nm

Temperature

  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -10 to 50 Degree C

Physical Properties

  • Weight
    1000 g
  • Dimension
    135 x 107 x 90 mm (L x W x H)
