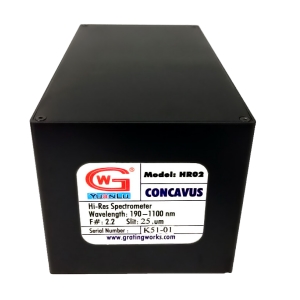

HR-02

Spectrometer by GratingWorks Co., Ltd
21 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to GratingWorks Co., Ltd.

The HR-02 from GratingWorks Co., Ltd is a Spectrometer with Wavelength Range 190 nm, 1100 nm. More details for HR-02 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HR-02
  • Manufacturer
    GratingWorks Co., Ltd
  • Description
    190 nm, 1100 nm wavelength, UV-VIS-NIR spectrometer for VIS, UV, NIR Spectroscopy

Connections & Interface

  • Fiber optic connector
    SMA905
  • Interface
    USB 2.0, RS232

General Parameters

  • Measuring Techniques
    VIS Spectroscopy, UV Spectroscopy, NIR Spectroscopy
  • Spectrometer Type
    Benchtop
  • Wavelength Range
    190 nm, 1100 nm
  • Spectrum Band
    UV-VIS-NIR
  • A/D Resolution
    16 Bit
  • Stray Light :
    <0.05%
  • Slitwidth
    1 to 1.7 nm
  • Pixels
    3648 pixels, 2048 pixels
  • Aperture(f-number)
    2.2, 1.0
  • Detector
    Toshiba TCD1304, Hamamatsu S11155/6
  • Dynamic Range
    >2000 to >43000
  • Entrance Slit
    10 µm, 25 µm, 50 µm, 100 µm
  • Pixels Size
    8 x 200 µm, 14 x 500 µm, 14 x 1000 µm
  • Noise Ratio
    420 to 3400
  • Operating System
    Windows XP, Windows 7, Windows 8
  • Pixel Well Depth
    86K photon, 200 Ke-
  • Readout Noise
    <1.5 to <30 rms
  • Trigger Modes
    Software, External

Physical Properties

  • Weight
    705 g
  • Dimension
    140 x 76.3 x 64.5 mm
