ENS-C316

Spectrometer by Ibsen Photonics

Note: Your Quotation Request will be directed to Ibsen Photonics.

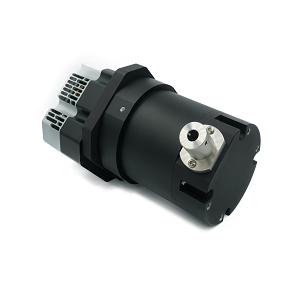

The ENS-C316 from Ibsen Photonics is a Spectrometer with Wavelength Range 800 to 1100 nm, Spectral Resolution 0.4 nm. More details for ENS-C316 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ENS-C316
  • Manufacturer
    Ibsen Photonics
  • Description
    800 to 1100 nm wavelength, NIR spectrometer for Raman Spectroscopy, NIR Spectroscopy with 0.4 nm spectral resolution

Connections & Interface

  • Interface
    USB 2.0

General Parameters

  • Measuring Techniques
    Raman Spectroscopy, NIR Spectroscopy
  • Spectrometer Type
    Modular
  • Wavelength Range
    800 to 1100 nm
  • Spectral Resolution
    0.4 nm
  • Spectrum Band
    NIR
  • Stray Light :
    <0.03%
  • Detector
    iVac 316
  • Numerical Aperture
    0.3

Temperature

  • Operating Temperature
    0 to 40 Degree C

Physical Properties

  • Dimension
    128 x 128 x 248 mm
