RSM-445

Spectrometer by Ibsen Photonics

Note: Your Quotation Request will be directed to Ibsen Photonics.

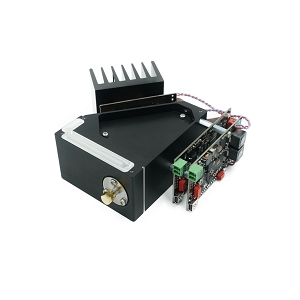

The RSM-445 from Ibsen Photonics is a Spectrometer with Wavelength Range 900 to 1700 nm, Spectral Resolution 7 nm. More details for RSM-445 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RSM-445
  • Manufacturer
    Ibsen Photonics
  • Description
    900 to 1700 nm wavelength, NIR spectrometer for Transmission, NIR Spectroscopy with 7 nm spectral resolution

Connections & Interface

  • Interface
    USB 2.0

General Parameters

  • Measuring Techniques
    Transmission, NIR Spectroscopy
  • Spectrometer Type
    Modular
  • Wavelength Range
    900 to 1700 nm
  • Spectral Resolution
    7 nm
  • Spectrum Band
    NIR
  • Stray Light :
    <0.1%
  • Detector
    InGaAs
  • Dynamic Range
    12000:1
  • Image Sensor
    InGaAs
  • Noise Ratio
    2500:1
  • Numerical Aperture
    0.22

Temperature

  • Operating Temperature
    -10 to 45 Degree C

Physical Properties

  • Dimension
    110 x 105 x 45 mm
