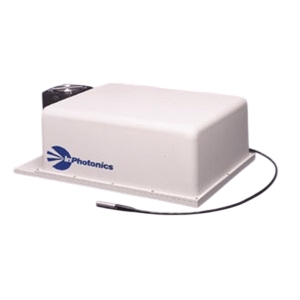

RS2000

Spectrometer by InPhotonics
5 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to InPhotonics.

The RS2000 from InPhotonics is a Spectrometer with Wavelength Range 532 nm, 785 nm, Spectral Resolution 1 cm-1 (FWHM), <0.3 cm-1 (Pixel). More details for RS2000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RS2000
  • Manufacturer
    InPhotonics
  • Description
    532 nm, 785 nm High Resolution Raman Spectrometer with 0.3 to 1 cm-1 Resolution

General Parameters

  • Measuring Techniques
    VIS Spectroscopy, NIR Spectroscopy, Raman Spectroscopy, CCD Spectroscopy
  • Spectrometer Type
    Benchtop, Portable
  • Wavelength Range
    532 nm, 785 nm
  • Spectral Resolution
    1 cm-1 (FWHM), <0.3 cm-1 (Pixel)
  • Spectrum Band
    VIS-NIR, Green
  • Pixels
    1024 x 256 pixels
  • Detector
    Three-stage TE-cooled, front-illuminated CCD array
  • Image Sensor
    CCD
  • Laser Output power
    50 mW, 300 mW (Source)
  • Operating System
    Windows XP, Windows 200

Temperature

  • Operating Temperature
    -55 Degree C

Physical Properties

  • Weight
    65 lbs
  • Dimension
    26 x 16 x 8 inches
