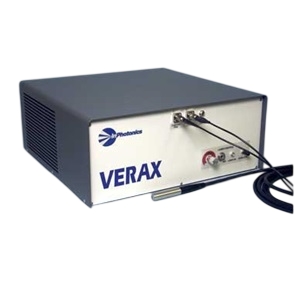

VERAX

Spectrometer by InPhotonics
5 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to InPhotonics.

The VERAX from InPhotonics is a Spectrometer with Wavelength Range 250 to 1800 cm-1, 250 to 2300 cm-1, Spectral Resolution 4 to 5 cm-1, 6 to 8 cm-1. More details for VERAX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VERAX
  • Manufacturer
    InPhotonics
  • Description
    250 to 2300 cm-1 Laboratory Raman Spectrometer with 4 to 8 cm-1 Resolution

Applications

  • Applications
    laboratory

General Parameters

  • Measuring Techniques
    MWIR Spectroscopy, Raman Spectroscopy, CCD Spectroscopy
  • Spectrometer Type
    Benchtop
  • Wavelength Range
    250 to 1800 cm-1, 250 to 2300 cm-1
  • Spectral Resolution
    4 to 5 cm-1, 6 to 8 cm-1
  • Spectrum Band
    Mid-IR, FIR
  • Pixels
    1024 x 128 pixels
  • Detector
    Vacuum-sealed, TE-cooled CCD array
  • Detector Array
    CCD Array
  • Image Sensor
    CCD
  • Laser Output power
    300 mW (Source)
  • Operating System
    PC with Windows XP

Temperature

  • Operating Temperature
    Up to 30 Degree C

Physical Properties

  • Dimension
    343 x 343 x 152 mm
