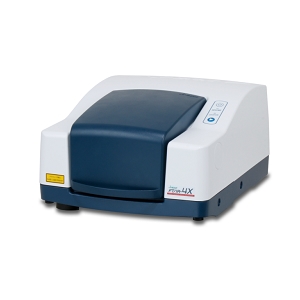

FT/IR-4X

Spectrometer by JASCO
11 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to JASCO.

The FT/IR-4X from JASCO is a Spectrometer with Wavelength Range 7800 to 350 cm-1, Spectral Resolution 0.4 cm-1. More details for FT/IR-4X can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FT/IR-4X
  • Manufacturer
    JASCO
  • Description
    7800 to 350 cm-1 wavelength, IR spectrometer for Raman Spectroscopy with 0.4 cm-1 spectral resolution

Connections & Interface

  • Interface
    USB 2.0

General Parameters

  • Measuring Techniques
    Raman Spectroscopy
  • Spectrometer Type
    Benchtop
  • Wavelength Range
    7800 to 350 cm-1
  • Spectral Resolution
    0.4 cm-1
  • Spectrum Band
    IR
  • Detector
    DLaTGS
  • Image Sensor
    InGaAs
  • Noise Ratio
    35000:1
  • Wavelength accuracy
    ±0.01 cm-1

Physical Properties

  • Weight
    18 kg
  • Dimension
    386 x 479 x 254 mm (W x D x H)
