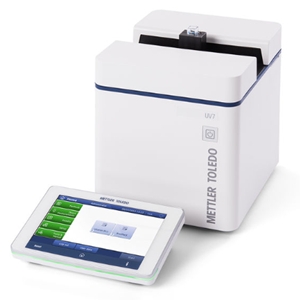

UV7

Spectrometer by Mettler-Toledo
10 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Mettler-Toledo.

The UV7 from Mettler-Toledo is a Spectrometer with Wavelength Range 190 to 1100 nm, Spectral Resolution >1.9 nm. More details for UV7 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UV7
  • Manufacturer
    Mettler-Toledo
  • Description
    190 to 1100 nm Benchtop Spectrophotometer with ±0.5 nm Accuracy

Applications

  • Applications
    Color, Quant, Scan, Water, Kinetic, Pharma

Connections & Interface

  • Interface
    USB, RS-232C

General Parameters

  • Measuring Techniques
    UV Spectroscopy, VIS Spectroscopy, CCD Spectroscopy
  • Spectrometer Type
    Benchtop
  • Wavelength Range
    190 to 1100 nm
  • Spectral Resolution
    >1.9 nm
  • Spectrum Band
    UV-VIS
  • Stray Light :
    <0.02 to 0.5%
  • Pixels
    800 x 400 pixels
  • Detector Array
    CCD Array
  • Image Sensor
    CCD
  • Operating System
    LabX
  • Scan Range
    1 s
  • Wavelength accuracy
    ±0.5 nm
  • Wavelength Reproducibility
    <0.08 nm (Repeatability)

Physical Properties

  • Weight
    6.4 kg
  • Dimension
    208 x 255 x 228 mm (W x D x H)
