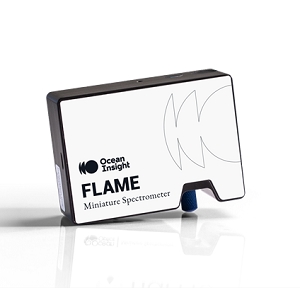

Flame UV-VIS

Spectrometer by Ocean Optics
78 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Ocean Optics.


Product Specifications

View similar products

Product Details

  • Part Number
    Flame UV-VIS
  • Manufacturer
    Ocean Optics

Connections & Interface

  • Interface
    GPIO, USB

General Parameters

  • Measuring Techniques
    Absorbance, Color Measurement, Fluorescence Spectroscopy, Irradiance, Reflectance, Transmission
  • Spectrometer Type
    Modular
  • Wavelength Range
    200 to 850 nm
  • Spectral Resolution
    1.33 to 1.34 nm
  • Spectrum Band
    Blue, Green, Infrared, Orange, Red, Ultraviolet, Violet, Yellow, UV-VIS
  • A/D Resolution
    16 Bit
  • Integration Time
    1 ms to 65 s
  • Pixels
    2048, 3648
  • Dark Noise
    50 RMS counts
  • Dynamic Range
    1300:1 for a single acquisition, 8.5 x 10^7 (system)
  • Noise Ratio
    250:1 (full signal), 300:1 (full signal)
  • Trigger Modes
    4 modes

Physical Properties

  • Weight
    265 g
  • Dimension
    89.1 mm x 63.3 mm x 31.9 mm
