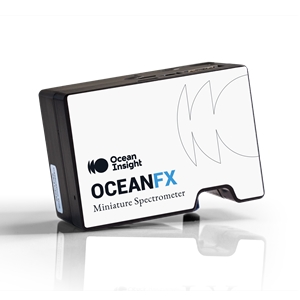

The Ocean FX UV-VIS from Ocean Insight is a UV-Vis Spectrometer that operates at a wavelength of 200 nm - 850 nm. It has an optical resolution of 1.33 nm at FWHM and entrance slit width of 25 µm. This spectrometer has a 16-bit A/D converter and dynamic range of 5000:1. It has a signal-to-noise ratio of 290:1 and an integration time of 10 µs - 10 s. This spectrometer has a maximum scan rate of 4500 scans/second and buffering of up to 50000 spectra.
The Ocean FX UV-VIS has a CMOS detector and grating. It has 4 trigger modes and 8 x user-programmable general-purpose input/outputs (GPIOs). This spectrometer has an input SMA 905 or FC fiber connector and can be controlled via gigabit ethernet, Wi-Fi, RS-232 & USB interfaces. It is ideal for the measurement of fast events, flicker in lighting, reaction monitoring, and high-speed process applications.
