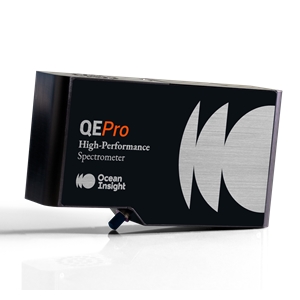

QE Pro-FL

Spectrometer by Ocean Optics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Ocean Optics.

The QE Pro-FL from Ocean Optics is a Spectrometer with Wavelength Range 350 to 1100 nm, Spectral Resolution 0.14 to 7.7 nm. More details for QE Pro-FL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QE Pro-FL
  • Manufacturer
    Ocean Optics
  • Description
    QE Pro-FL High-sensitivity Spectrometer for Fluorescence

Applications

  • Applications
    Biotechnology Applications, Protein & Nucleic Acid Analysis, Agricultural Measurements and Monitoring, Food & Beverage Quality Control, Teaching Labs, Metallurgical Analysis, Polymer Analysis

Connections & Interface

  • Connector
    FC
  • Fiber optic connector
    SMA 905
  • Interface
    USB 2.0, 480 Mbps (USB 1.1 compatible) RS-232 (5-wire)

General Parameters

  • Measuring Techniques
    Fluorescence
  • Spectrometer Type
    Modular, Portable
  • Wavelength Range
    350 to 1100 nm
  • Spectral Resolution
    0.14 to 7.7 nm
  • A/D Resolution
    18 bit
  • Integration Time
    8 ms to 60 minutes
  • Pixels
    1044 x 64 pixels
  • Detector
    Hamamatsu scientific grade, back-thinned, TE Cooled
  • Detector Range
    185 to 1100 nm
  • Dynamic Range
    85,000:1
  • Entrance Slit
    5, 10, 25, 50, 100 or 200 µm wide slits
  • Grating :
    14 gratings available (H1-H14), HC1 grating
  • Image Sensor
    64 element CCD array
  • Noise Ratio
    1000:1 (single acquisition)
  • Quantum Efficiency
    90% (peak)
  • Relative Humidity
    = 90% noncondensing
  • Series
    QE Pro Series
  • Supply Voltage
    4.5 to 5.5 V

Temperature

  • Operating Temperature
    0 to 50 Degree C

Physical Properties

  • Weight
    1.15 kg
  • Dimension
    182 mm x 110 mm x 47 mm
