20022G

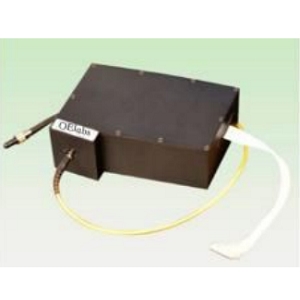

Spectrometer by Oelabs
20 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Oelabs.

Product Specifications

View similar products

Product Details

  • Part Number
    20022G
  • Manufacturer
    Oelabs

Applications

  • Applications
    Online Color Analysis, Biology and Chemical Reaction Process Monitoring, Radiation Measurement, Biological Research, Chemical Analysis and Recognition, Concentration Measurement

Connections & Interface

  • Fiber optic connector
    SMA-905
  • Interface
    USB 1.1, USB 2.0

General Parameters

  • Spectrometer Type
    Benchtop
  • Pixels
    2048 pixels
  • Detector Range
    800 to 980 nm
  • Entrance Slit
    25 to 50 µm (Entrance Aperture)
  • Pixels Size
    14 µm x 500 µm
  • Image Sensor
    CCD
  • Noise Ratio
    5000:1

Temperature

  • Operating Temperature
    0 to 40 Degree C

Technical Documents
Click to view more product details on manufacturer's website
