ATR2500-532

Spectrometer by Optosky
42 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Optosky.

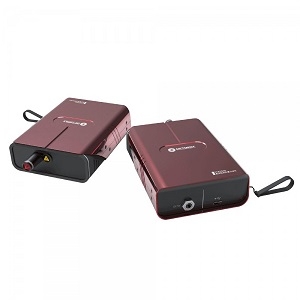

The ATR2500-532 from Optosky is a Spectrometer with Wavelength Range 532 nm, Spectral Resolution 8 to 12 cm-1. More details for ATR2500-532 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ATR2500-532
  • Manufacturer
    Optosky
  • Description
    532 nm wavelength, VIS spectrometer for Raman Spectroscopy, Fluorescence Spectroscopy, VIS Spectroscopy with 8 to 12 cm-1 spectral resolution

Applications

  • Applications
    Nanoparticles and new materials, Research of Research Institute, Bioscience, Forensic Medicine, Material science, Medical immunoassay, Agriculture and food identification, Gems and inorganic minerals ID, Environmental science

Connections & Interface

  • Interface
    USB 2.0

General Parameters

  • Measuring Techniques
    Raman Spectroscopy, Fluorescence Spectroscopy, VIS Spectroscopy
  • Spectrometer Type
    Handheld
  • Wavelength Range
    532 nm
  • Spectral Resolution
    8 to 12 cm-1
  • Spectrum Band
    VIS
  • Integration Time
    4 ms to 120 sec
  • Pixels
    2048 pixels
  • Detector Range
    200 to 1100 nm
  • Dynamic Range
    50000:1
  • Laser Output power
    100 mW
  • Noise Ratio
    >1300:1
  • Relative Humidity
    <95%
  • Supply Voltage
    5 V
  • Wavelength accuracy
    ±0.5 nm
  • Note
    Power stability: <±0.2%, Spectral range: 100 to 4100 cm-1

Temperature

  • Operating Temperature
    -20 to 50 Degree C

Physical Properties

  • Weight
    390 g
  • Dimension
    119.2 x 89 x 35 mm (L x W x H) (Without probe), 139 x 89 x 35 mm (L x W x H) (With probe)
