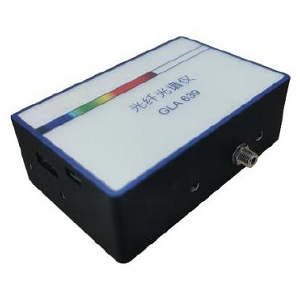

GLA639 NIR

Spectrometer by Precision Micro-Optics
14 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Precision Micro-Optics.

The GLA639 NIR from Precision Micro-Optics is a Spectrometer with Wavelength Range 750 to 960 nm, Spectral Resolution 0.5 nm. More details for GLA639 NIR can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GLA639 NIR
  • Manufacturer
    Precision Micro-Optics
  • Description
    750 to 960 nm wavelength, NIR spectrometer for Absorbance, Reflectance, Transmission, NIR Spectroscopy with 0.5 nm spectral resolution

Applications

  • Applications
    Environmental Inspection, Chemical Industry, Optical Coating Inspection, Glass and Transparent Materials Inspection, Measuring Light Sources Such as LEDs

Connections & Interface

  • Fiber optic connector
    SMA905
  • Interface
    USB, RS232, TTL

General Parameters

  • Measuring Techniques
    Absorbance, Reflectance, Transmission, NIR Spectroscopy
  • Spectrometer Type
    Benchtop
  • Wavelength Range
    750 to 960 nm
  • Spectral Resolution
    0.5 nm
  • Spectrum Band
    NIR
  • A/D Resolution
    16 Bit
  • Integration Time
    8 ms to 15 min
  • Stray Light :
    0.003
  • Slitwidth
    10 µm, 25 µm, 50 µm, 100 µm
  • Pixels
    2048 pixels
  • Pixels Size
    8 x 200 µm
  • Noise Ratio
    800:1
  • Supply Voltage
    5 VDC
  • Trigger Modes
    Internal or External

Temperature

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -20 to 70 Degree C

Physical Properties

  • Weight
    300 g
  • Dimension
    100 x 65 x 36 mm
