Atom

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

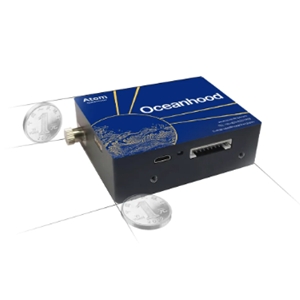

The Atom from Oceanhood is a Spectrometer with Wavelength Range 200 to 1050 nm, Spectral Resolution 1 to 4.5 nm. More details for Atom can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Atom
  • Manufacturer
    Oceanhood
  • Description
    200 to 1050 nm Spectrometer with 1 to 4.5 nm Resolution

Applications

  • Applications
    Laser Analysis, Plasma Emission Spectroscopy, Color Measurement, Absorbance, Raman Analysis

Connections & Interface

  • Connector
    SMA 905
  • Fiber optic connector
    SMA 905
  • Interface
    USB 2.0, RS-232, TTL

General Parameters

  • Measuring Techniques
    UV Spectroscopy, VIS Spectroscopy, NIR Spectroscopy, CCD Spectroscopy, Color Measurement, Absorbance, Absorbtion Spectroscopy
  • Spectrometer Type
    Modular
  • Wavelength Range
    200 to 1050 nm
  • Spectral Resolution
    1 to 4.5 nm
  • Spectrum Band
    UV-VIS-NIR
  • A/D Resolution
    16 bit
  • Integration Time
    60 µs to 65 s
  • Pixels
    1024 pixels
  • Dynamic Range
    5000:1
  • Entrance Slit
    10 µm, 25 µm, 50 µm
  • Noise Ratio
    300:1
  • Readout Noise
    <30 RMS
  • Relative Humidity
    20 to 85%

Temperature

  • Operating Temperature
    0 to 40 Degree C

Physical Properties

  • Weight
    200 g
