Atropos

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

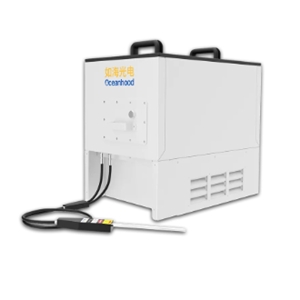

The Atropos from Oceanhood is a Spectrometer with Wavelength Range 785 nm, Spectral Resolution 8 cm-1. More details for Atropos can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Atropos
  • Manufacturer
    Oceanhood
  • Description
    785 nm Raman process spectrometer with 8 cm-1 Resolution

Applications

  • Applications
    Reaction Process Monitoring, Immersion Process Detection, Window-Based Process Detection, Concentration Component Process Detection

Connections & Interface

  • Connector
    SMA 905, FC/PC
  • Fiber optic connector
    SMA 905, FC/PC
  • Interface
    USB

General Parameters

  • Measuring Techniques
    NIR Spectroscopy, Raman Spectroscopy
  • Spectrometer Type
    Benchtop
  • Wavelength Range
    785 nm
  • Spectral Resolution
    8 cm-1
  • Spectrum Band
    NIR
  • Integration Time
    8 ms to 30 minutes
  • Pixels
    1024 x 58 pixels
  • Laser Output power
    500 mW
  • Relative Humidity
    5 to 80%
  • Supply Voltage
    5 V
  • Wavelength Reproducibility
    <1 cm-1 (Shift)

Temperature

  • Operating Temperature
    0 to 40 Degree C

Physical Properties

  • Dimension
    325 x 220 x 109 mm
