Gino

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

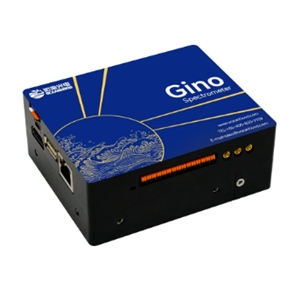

The Gino from Oceanhood is a Spectrometer with Wavelength Range 200 to 1100 nm, Spectral Resolution 0.8 to 1 nm. More details for Gino can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Gino
  • Manufacturer
    Oceanhood
  • Description
    200 to 1100 nm Iot Spectrometer with 0.8 to 1 nm Resolution

Applications

  • Applications
    Agricultural Sector, Trace Metal Detection

Connections & Interface

  • Connector
    SMA 905
  • Fiber optic connector
    SMA 905
  • Interface
    USB 2.0, RS-232

General Parameters

  • Measuring Techniques
    UV Spectroscopy, VIS Spectroscopy, NIR Spectroscopy, CCD Spectroscopy
  • Spectrometer Type
    Modular
  • Wavelength Range
    200 to 1100 nm
  • Spectral Resolution
    0.8 to 1 nm
  • Spectrum Band
    UV-VIS-NIR
  • A/D Resolution
    16 bit
  • Integration Time
    6 µs to 65 s
  • Stray Light :
    <0.1%
  • Pixels
    2048 pixels
  • Dynamic Range
    >3000:1
  • Entrance Slit
    10 µm
  • Image Sensor
    CCD
  • Noise Ratio
    >380:1
  • Readout Noise
    <30 RMS
  • Relative Humidity
    20 to 85%

Temperature

  • Operating Temperature
    0 to 40 Degree C

Physical Properties

  • Weight
    370 g
