HS4096

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

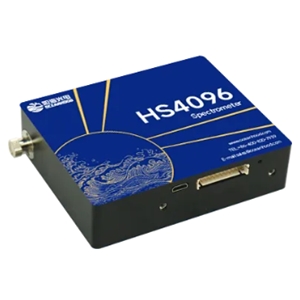

The HS4096 from Oceanhood is a Spectrometer with Wavelength Range 200 to 1100 nm, Spectral Resolution 0.4 to 3.8 nm. More details for HS4096 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HS4096
  • Manufacturer
    Oceanhood
  • Description
    200 to 1100 nm High-Resolution Spectrometer with 0.4 to 3.8 nm Resolution

Applications

  • Applications
    Medical Field

Connections & Interface

  • Connector
    SMA 905
  • Fiber optic connector
    SMA 905
  • Interface
    USB 2.0, RS-232

General Parameters

  • Measuring Techniques
    UV Spectroscopy, VIS Spectroscopy, NIR Spectroscopy, CCD Spectroscopy
  • Spectrometer Type
    Modular
  • Wavelength Range
    200 to 1100 nm
  • Spectral Resolution
    0.4 to 3.8 nm
  • Spectrum Band
    UV-VIS-NIR
  • A/D Resolution
    16 bit
  • Integration Time
    60 µs to 65 s
  • Pixels
    4096 pixels
  • Dynamic Range
    >3200:1
  • Entrance Slit
    10 µm, 25 µm, 50 µm, 100 µm, 200 µm
  • Image Sensor
    CCD
  • Noise Ratio
    >400:1
  • Readout Noise
    <20 RMS
  • Relative Humidity
    20 to 85%

Temperature

  • Operating Temperature
    0 to 40 Degree C
Click to view more product details on manufacturer's website
