In situ microelectrochemical Raman spectrometer

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

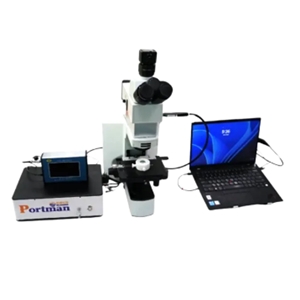

The In situ microelectrochemical Raman spectrometer from Oceanhood is a Spectrometer with Wavelength Range 200 to 3000 cm-1, Spectral Resolution 8 cm-1. More details for In situ microelectrochemical Raman spectrometer can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    In situ microelectrochemical Raman spectrometer
  • Manufacturer
    Oceanhood
  • Description
    200 to 3000 cm-1 Raman spectrometer with 8 cm-1 Resolution

General Parameters

  • Measuring Techniques
    MWIR Spectroscopy, FIR Spectroscopy, Raman Spectroscopy
  • Spectrometer Type
    Portable
  • Wavelength Range
    200 to 3000 cm-1
  • Spectral Resolution
    8 cm-1
  • Spectrum Band
    Mid-IR, FIR
  • Pixels Size
    1.67 x 1.67 µm
  • Laser Output power
    0 to 500 mW
  • Relative Humidity
    5 to 80%

Temperature

  • Operating Temperature
    0 to 40 Degree C

Physical Properties

  • Dimension
    325 x 225 x 300 mm (Raman Module), 550 x 280 x 380 mm (Microscope Module), 700 x 500 x 700 mm (All)
Click to view more product details on manufacturer's website
