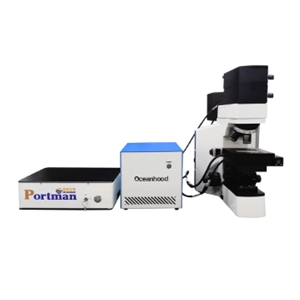

MR2-532-785PA

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

The MR2-532-785PA from Oceanhood is a Spectrometer with Wavelength Range 532 nm, 785 nm, Spectral Resolution 8 cm-1. More details for MR2-532-785PA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MR2-532-785PA
  • Manufacturer
    Oceanhood
  • Description
    532 nm, 785 nm Automatic Dual-Channel Microscopic Raman Spectrometer with 8 cm-1 Resolution

Applications

  • Applications
    Rapid Screening of Controlled Substances, Microplastic Application Sharing, Tumor Detection with Micro-Raman Spectroscopy, On-site Rapid Detection of Urease in Bulk Milk Powder, Graphene Micro-Raman Detection, Coal Micro-Raman Detection, Kidney Stone Micr

General Parameters

  • Measuring Techniques
    NIR Spectroscopy, Raman Spectroscopy
  • Spectrometer Type
    Modular
  • Wavelength Range
    532 nm, 785 nm
  • Spectral Resolution
    8 cm-1
  • Spectrum Band
    Green, NIR
  • A/D Resolution
    18 bit
  • Integration Time
    10 ms to 900 s
  • Pixels
    1024 x 58 pixels
  • Detector
    TEC Deep-Cooled Focal Plane Array
  • Dynamic Range
    >38000:1
  • Laser Output power
    0 to 500 mW, 0 to 100 mW
  • Noise Ratio
    >1000:1
Click to view more product details on manufacturer's website
