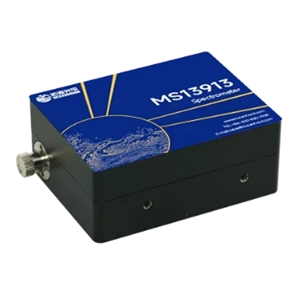

MS13913

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

The MS13913 from Oceanhood is a Spectrometer with Wavelength Range 900 to 1700 nm, Spectral Resolution 8 to 10 nm. More details for MS13913 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MS13913
  • Manufacturer
    Oceanhood
  • Description
    900 to 1700 nm Near-infrared spectrometer with SMA 905 Interface

Applications

  • Applications
    Agricultural

Connections & Interface

  • Connector
    SMA 905
  • Fiber optic connector
    SMA 905
  • Interface
    USB 2.0, RS-232

General Parameters

  • Measuring Techniques
    UV Spectroscopy, VIS Spectroscopy, NIR Spectroscopy, CCD Spectroscopy
  • Spectrometer Type
    Modular
  • Wavelength Range
    900 to 1700 nm
  • Spectral Resolution
    8 to 10 nm
  • Spectrum Band
    UV-VIS-NIR
  • A/D Resolution
    16 bit
  • Integration Time
    100 µs to 5 s
  • Pixels
    256 pixels
  • Entrance Slit
    10 µm, 25 µm
  • Image Sensor
    CCD
  • Noise Ratio
    1000:1
  • Readout Noise
    <30 RMS
  • Relative Humidity
    20 to 85%

Temperature

  • Operating Temperature
    0 to 40 Degree C

Physical Properties

  • Weight
    295 g
  • Dimension
    72 x 55 x 28.5 mm
Click to view more product details on manufacturer's website
