NIRMini

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

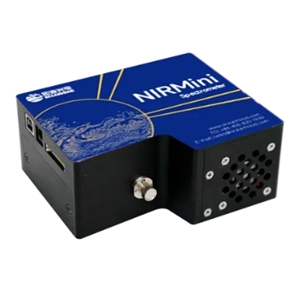

The NIRMini from Oceanhood is a Spectrometer with Wavelength Range 900 to 2500 nm, Spectral Resolution Up to 0.3 nm. More details for NIRMini can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    NIRMini
  • Manufacturer
    Oceanhood
  • Description
    900 to 2500 nm High-Sensitivity Cooling Near-Infrared Spectrometer with Up to 0.3 nm Resolution

Applications

  • Applications
    Water Content Testing, Pharmaceutical

Connections & Interface

  • Interface
    USB 2.0, RS-232

General Parameters

  • Measuring Techniques
    UV Spectroscopy, VIS Spectroscopy, NIR Spectroscopy, CCD Spectroscopy, Reflectance, Absorption Spectroscopy, Transmission
  • Spectrometer Type
    Modular
  • Wavelength Range
    900 to 2500 nm
  • Spectral Resolution
    Up to 0.3 nm
  • Spectrum Band
    UV-VIS-NIR
  • A/D Resolution
    16 bit
  • Integration Time
    100 µs to 50 ms
  • Dark Noise
    <8 RMS
  • Dynamic Range
    15000:1, 10000:1, 7500:1
  • Image Sensor
    CCD
  • Noise Ratio
    2000:1, 13000:1 (Full)
  • Relative Humidity
    20 to 85%

Temperature

  • Operating Temperature
    0 to 40 Degree C

Physical Properties

  • Weight
    1.53 kg
