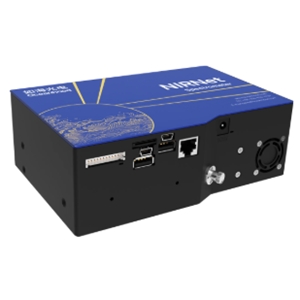

NIRNet

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

The NIRNet from Oceanhood is a Spectrometer with Wavelength Range 900 to 2500 nm, Spectral Resolution 0.3 nm. More details for NIRNet can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    NIRNet
  • Manufacturer
    Oceanhood
  • Description
    900 to 2500 nm Near-Infrared Spectrometer with 0.3 nm Resolution

Applications

  • Applications
    Pharmaceutical, Precise Moisture Content Determination, Protein Content Analysis

Connections & Interface

  • Interface
    Gigabit Ethernet

General Parameters

  • Measuring Techniques
    CCD Spectroscopy, Reflectance, Transmission, Absorbance
  • Spectrometer Type
    Modular
  • Wavelength Range
    900 to 2500 nm
  • Spectral Resolution
    0.3 nm
  • Spectrum Band
    NIR
  • A/D Resolution
    16 bit
  • Integration Time
    100 µs to 5 minutes
  • Stray Light :
    <0.1%
  • Pixels
    512 pixels
  • Dark Noise
    <8 RMS
  • Dynamic Range
    14000:1
  • Image Sensor
    CCD
  • Noise Ratio
    5000:1
  • Relative Humidity
    20 to 90% RH

Temperature

  • Operating Temperature
    10 to 30 Degree C
