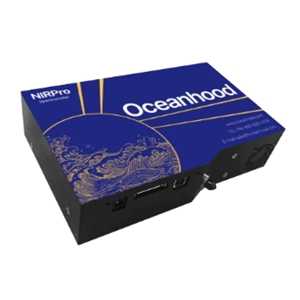

NIRPro

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

The NIRPro from Oceanhood is a Spectrometer with Wavelength Range 950 to 1700 nm, Spectral Resolution Up to 0.3 nm. More details for NIRPro can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    NIRPro
  • Manufacturer
    Oceanhood
  • Description
    950 to 1700 nm High-Resolution Cooling Near-Infrared Spectrometer with Up to 0.3 nm Resolution

Applications

  • Applications
    Thickness Measurement

Connections & Interface

  • Interface
    USB 2.0, RS-232

General Parameters

  • Measuring Techniques
    CCD Spectroscopy, Reflectance, Transmission, Absorbance
  • Spectrometer Type
    Modular
  • Wavelength Range
    950 to 1700 nm
  • Spectral Resolution
    Up to 0.3 nm
  • Spectrum Band
    NIR
  • A/D Resolution
    16 bit
  • Integration Time
    100 µs to 30 s
  • Dark Noise
    <8 RMS
  • Dynamic Range
    15000:1
  • Image Sensor
    CCD
  • Noise Ratio
    2000:1, 13000:1 (Full)
  • Relative Humidity
    20 to 85%

Temperature

  • Operating Temperature
    10 to 30 Degree C

Physical Properties

  • Weight
    1.53 kg
  • Dimension
    185 x 118 x 45 mm
Click to view more product details on manufacturer's website
