OFS2500

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

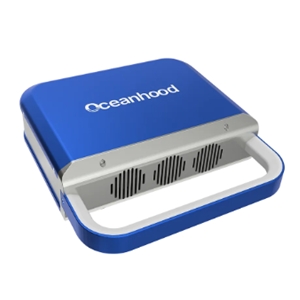

The OFS2500 from Oceanhood is a Spectrometer with Wavelength Range 350 to 2500 nm, Spectral Resolution 2.5 nm, 8 nm. More details for OFS2500 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OFS2500
  • Manufacturer
    Oceanhood
  • Description
    350 to 2500 nm Field Spectrometer with 2.5 nm, 8 nm Resolution

Applications

  • Applications
    Material Analysis, Mineral Identification, Geological Analysis, Agricultural Monitoring

Connections & Interface

  • Interface
    RJ45, Gigabit Ethernet Port

General Parameters

  • Measuring Techniques
    UV Spectroscopy, VIS Spectroscopy, SWIR Spectroscopy, Reflectance
  • Spectrometer Type
    Portable
  • Wavelength Range
    350 to 2500 nm
  • Spectral Resolution
    2.5 nm, 8 nm
  • Spectrum Band
    UV-VIS, SWIR
  • Integration Time
    60 µs to 65 s, 100 µs to 50 ms
  • Stray Light :
    <0.4%
  • Wavelength accuracy
    0.5 nm
  • Wavelength Reproducibility
    0.2 nm (Repeatability)

Temperature

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -15 to 45 Degree C

Physical Properties

  • Weight
    4.6 kg
  • Dimension
    24 x 31 x 10 cm
Click to view more product details on manufacturer's website
