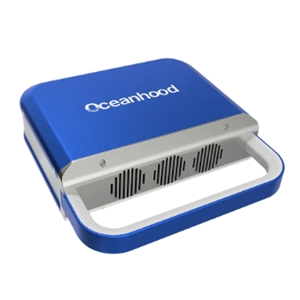

OFS2500-R

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

The OFS2500-R from Oceanhood is a Spectrometer with Wavelength Range 350 to 2500 nm, Spectral Resolution 2.5 nm, 8 nm. More details for OFS2500-R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OFS2500-R
  • Manufacturer
    Oceanhood
  • Description
    350 to 2500 nm Coating Spectrometer with 2.5 nm, 8 nm Resolution

Applications

  • Applications
    Building Energy Efficiency Inspection and Supervision, Scientific Research and Material Analysis, Material Testing

General Parameters

  • Measuring Techniques
    UV Spectroscopy, VIS Spectroscopy, SWIR Spectroscopy, Reflectance
  • Spectrometer Type
    Portable
  • Wavelength Range
    350 to 2500 nm
  • Spectral Resolution
    2.5 nm, 8 nm
  • Spectrum Band
    UV-VIS, SWIR
  • Integration Time
    1 ms to 65 s, 100 µs to 50 ms
  • Stray Light :
    <0.4%
  • Wavelength Reproducibility
    0.2 nm (Repeatability)

Temperature

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -15 to 45 Degree C

Physical Properties

  • Dimension
    31 x 33.3 x 10 cm
