QNet

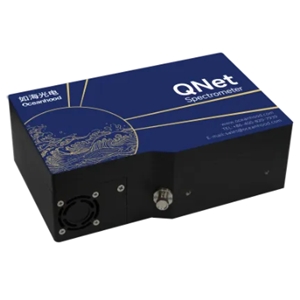

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

Product Specifications

View similar products

Product Details

  • Part Number
    QNet
  • Manufacturer
    Oceanhood
  • Description
    1024 x 58 pixels Deep-Cooling IoT Spectrometer with SMA 905 Interface

Applications

  • Applications
    Weak Raman Spectroscopy and Fluorescence Lifetime Analysis, Precision Optical Thin-Film and Material Characterization, Transient Spectroscopy and Combustion Diagnostics, Distributed Environmental and Water Quality Online Monitoring

Connections & Interface

  • Connector
    SMA 905
  • Fiber optic connector
    SMA 905
  • Interface
    RJ45, RS-232

General Parameters

  • Measuring Techniques
    CCD Spectroscopy, Raman Spectroscopy, Fluorescence Spectroscopy, Reflectance, Transmission
  • Spectrometer Type
    Modular
  • A/D Resolution
    18 bit
  • Integration Time
    8 ms to 30 minutes
  • Pixels
    1024 x 58 pixels
  • Dynamic Range
    36000:1
  • Entrance Slit
    10 µm, 25 µm, 50 µm, 100 µm, 200 µm
  • Image Sensor
    CCD
  • Noise Ratio
    1500:1
  • Relative Humidity
    20 to 85%

Temperature

  • Operating Temperature
    0 to 40 Degree C

Physical Properties

  • Dimension
    174 x 110 x 58 mm
Click to view more product details on manufacturer's website
