SEED3000

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

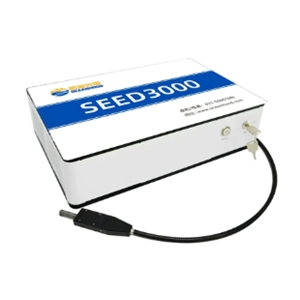

The SEED3000 from Oceanhood is a Spectrometer with Wavelength Range 200 to 3000 cm-1, Spectral Resolution <10 cm-1. More details for SEED3000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SEED3000
  • Manufacturer
    Oceanhood
  • Description
    200 to 3000 cm-1 Portable Raman Spectrometer with <10 cm-1 Resolution

Applications

  • Applications
    Biomedical, Food Safety

Connections & Interface

  • Interface
    USB

General Parameters

  • Measuring Techniques
    MWIR Spectroscopy, FIR Spectroscopy, Raman Spectroscopy
  • Spectrometer Type
    Portable
  • Wavelength Range
    200 to 3000 cm-1
  • Spectral Resolution
    <10 cm-1
  • Spectrum Band
    Mid-IR, FIR
  • Integration Time
    8 ms to 30 minutes
  • Laser Output power
    0 to 500 mW
  • Relative Humidity
    5 to 80%
  • Supply Voltage
    5 V
  • Wavelength Reproducibility
    <1 cm-1 (Shift Repeatability)

Temperature

  • Operating Temperature
    0 to 40 Degree C

Physical Properties

  • Weight
    4.4 kg
  • Dimension
    325 x 220 x 99 mm
