Spark

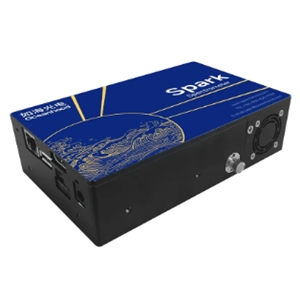

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

Product Specifications

View similar products

Product Details

  • Part Number
    Spark
  • Manufacturer
    Oceanhood
  • Description
    >600:1 Cooling IoT Miniature Spectrometer with 65 µs to 300 s Integration Time

Applications

  • Applications
    Transient Spectroscopy, High-End On-Site Color Measurement, Cavity-Enhanced Absorption Spectroscopy (CEAS), Fluorescence Spectroscopy

Connections & Interface

  • Connector
    SMA 905
  • Fiber optic connector
    SMA 905
  • Interface
    RJ45, Gigabit Ethernet

General Parameters

  • Measuring Techniques
    UV Spectroscopy, Reflectance, Transmission, Absorbtion Spectroscopy, Fluorescence Spectroscopy, Color Measurement
  • Spectrometer Type
    Modular
  • Spectrum Band
    UV
  • Integration Time
    65 µs to 300 s
  • Stray Light :
    <0.1%
  • Pixels
    2048 pixels
  • Dynamic Range
    >6000:1
  • Noise Ratio
    >600:1
  • Relative Humidity
    35 to 55% RH (Operating), <85% RH (Storage)

Temperature

  • Operating Temperature
    10 to 45 Degree C
