TEC2000

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

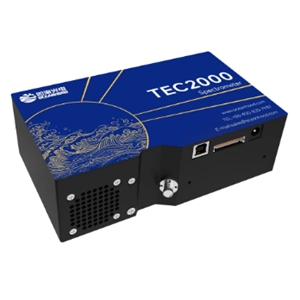

The TEC2000 from Oceanhood is a Spectrometer with Wavelength Range 200 to 1040 nm, Spectral Resolution 0.3 to 1.4 nm. More details for TEC2000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TEC2000
  • Manufacturer
    Oceanhood
  • Description
    200 to 1040 nm Cooling Spectrometer with 0.3 to 1.4 nm Resolution

Applications

  • Applications
    Laser measurement

Connections & Interface

  • Connector
    SMA 905
  • Fiber optic connector
    SMA 905
  • Interface
    USB 2.0, RS-232

General Parameters

  • Measuring Techniques
    UV Spectroscopy, VIS Spectroscopy, NIR Spectroscopy, CCD Spectroscopy
  • Spectrometer Type
    Modular
  • Wavelength Range
    200 to 1040 nm
  • Spectral Resolution
    0.3 to 1.4 nm
  • Spectrum Band
    UV-VIS-NIR
  • A/D Resolution
    16 bit
  • Integration Time
    8 ms to 300 s
  • Pixels
    2048 pixels
  • Dynamic Range
    >8000:1, 15000:1
  • Entrance Slit
    25 µm
  • Image Sensor
    CCD
  • Noise Ratio
    >800:1
  • Readout Noise
    <10 RMS
  • Relative Humidity
    20 to 85%

Temperature

  • Operating Temperature
    0 to 40 Degree C

Physical Properties

  • Weight
    1.12 kg
  • Dimension
    182 x 109 x 56 mm
