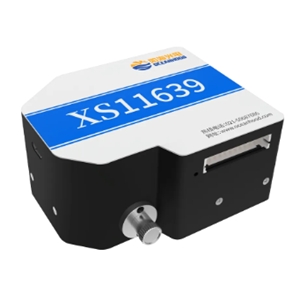

XS11639

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

The XS11639 from Oceanhood is a Spectrometer with Wavelength Range 200 to 1050 nm, Spectral Resolution 0.5 to 6.2 nm. More details for XS11639 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    XS11639
  • Manufacturer
    Oceanhood
  • Description
    200 to 1050 nm Spectrometer with 0.5 to 6.2 nm Resolution

Applications

  • Applications
    Flue Gas Detection, Spectral Analysis, Material Science, LED Sorting

Connections & Interface

  • Connector
    SMA 905
  • Fiber optic connector
    SMA 905
  • Interface
    USB 2.0, RS-232

General Parameters

  • Measuring Techniques
    UV Spectroscopy, VIS Spectroscopy, NIR Spectroscopy, CCD Spectroscopy
  • Spectrometer Type
    Modular
  • Wavelength Range
    200 to 1050 nm
  • Spectral Resolution
    0.5 to 6.2 nm
  • Spectrum Band
    UV-VIS-NIR
  • A/D Resolution
    16 bit
  • Integration Time
    60 µs to 65 s
  • Pixels
    2048 pixels
  • Dynamic Range
    3000:1
  • Entrance Slit
    10 µm, 25 µm, 50 µm, 100 µm, 200 µm
  • Noise Ratio
    380:1
  • Relative Humidity
    20 to 85%

Temperature

  • Operating Temperature
    0 to 40 Degree C

Physical Properties

  • Weight
    190 g
  • Dimension
    75 x 63.5 x 35 mm
Click to view more product details on manufacturer's website
