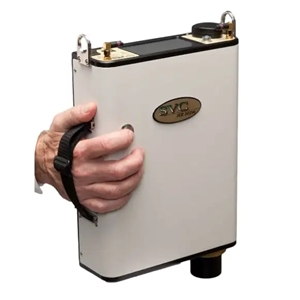

XHR-1024i

Spectrometer by Spectra Vista
5 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Spectra Vista.

The XHR-1024i from Spectra Vista is a Spectrometer with Wavelength Range 350 to 2500 nm, Spectral Resolution 2.8 to 8 nm. More details for XHR-1024i can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    XHR-1024i
  • Manufacturer
    Spectra Vista
  • Description
    350 to 2500 nm Enhanced Resolution Field Portable Spectroradiometer with 2.8 to 8 nm Resolution

Applications

  • Applications
    Vegetative Stress Analysis, Forestry Analysis, Land and Crop Management, Marine and Wetland Studies, Environmental Monitoring, Geological Studies, Mineral Identification, Drilling Core Analysis, Ground Truthing, Industrial QC and Process Control, Surface

Connections & Interface

  • Interface
    USB, RS-232

General Parameters

  • Measuring Techniques
    UV Spectroscopy , VIS Spectroscopy, NIR Spectroscopy
  • Spectrometer Type
    Portable, Stand-alone
  • Wavelength Range
    350 to 2500 nm
  • Spectral Resolution
    2.8 to 8 nm
  • Spectrum Band
    UV-VIS-NIR
  • A/D Resolution
    16 bit
  • Integration Time
    1 ms
  • Detector
    Silicon, InGaAs
  • Image Sensor
    InGaAs
  • Relative Humidity
    90% RH
  • Wavelength Reproducibility
    0.1 nm (Repeatability)

Temperature

  • Operating Temperature
    -10 to 40 Degree C

Physical Properties

  • Weight
    3.8 kg
  • Dimension
    22 x 29 x 8 cm

Technical Documents
Click to view more product details on manufacturer's website
