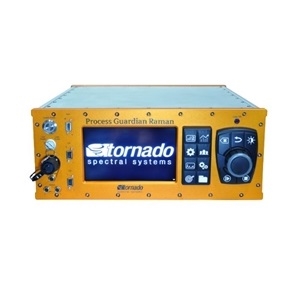

Process Guardian Raman™ Spectrometer

Spectrometer by Tornado Spectral Systems
1 more product from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Tornado Spectral Systems.

The Process Guardian Raman™ Spectrometer from Tornado Spectral Systems is a Spectrometer with Wavelength Range 785 nm, Spectral Resolution < 5 cm-1. More details for Process Guardian Raman™ Spectrometer can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Process Guardian Raman™ Spectrometer
  • Manufacturer
    Tornado Spectral Systems
  • Description
    The Process Guardian™ is a new Raman analyzer addition to superior measurement performance

Connections & Interface

  • Fiber optic connector
    LC
  • Interface
    Dual Independent LAN (Gigabit Ethernet), OPC UA, Modbus TCP, USB

General Parameters

  • Spectrometer Type
    Benchtop, Rackmount
  • Wavelength Range
    785 nm
  • Spectral Resolution
    < 5 cm-1
  • Dynamic Range
    45,000 counts (pre-calibration)
  • Laser Output power
    20 mW up to 495 mW
  • Relative Humidity
    = 65% non-condensing
  • Note
    Spectral Range: 200 cm-1 to 3300 cm-1, Wavenumber Stability: ± 0.1 cm-1

Physical Properties

  • Weight
    33 lbs (15 kg)
  • Dimension
    7.7 x 17.6 x 24.7 in (19.5 x 44.6 x 62.6 cm)
