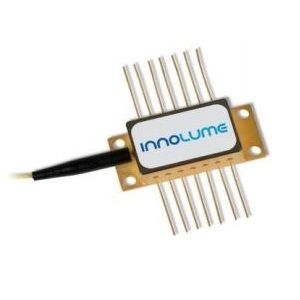

SLD-1060-20-YY-300

Superluminescent Diode by Innolume
10 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innolume.

The SLD-1060-20-YY-300 from Innolume is a Superluminescent Diode with Wavelength 1050 to 1070 nm, Output Power 250 to 300 mW, Bandwidth (FWHM) 15 to 20 nm, Forward Voltage 2 to 2.2 V, Forward Current 2000 mA. More details for SLD-1060-20-YY-300 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SLD-1060-20-YY-300
  • Manufacturer
    Innolume
  • Description
    Fiber Coupled Superluminescence Diode (SLD)

Fiber Parameters

  • Fiber Type
    HI1060, PM980
  • Numerical Aperture
    0.14, 0.12
  • Cladding Diameter
    125±1 µm
  • Coating Diameter
    245±15 µm
  • Fiber Bending Radius
    3 cm
  • Fiber Pigtail Length
    1.0 ± 0.1 1 m
  • Mode-field Diameter
    6.2±0.3 µm, 6.6±0.3 µm

General Parameters

  • Type
    Fiber-Coupled SLED
  • Wavelength
    1050 to 1070 nm
  • Center Wavelength
    1060 nm
  • Output Power
    250 to 300 mW
  • Bandwidth (FWHM)
    15 to 20 nm
  • Operation Mode
    CW Laser
  • Polarization Ratio
    15 to 20 dB
  • Forward Voltage
    2 to 2.2 V
  • Forward Current
    2000 mA
  • Cut-Off Wavelength
    HI1060: 920±50 nm, PM980: 900±70 nm
  • Reverse Voltage
    2 V
  • RoHS
    Yes
  • Spectral Ripple
    0.3 to 0.5 dB
  • TEC Current
    3 A
  • TEC Voltage
    4 V
  • Thermistor Resistance
    10 ± 0.1 kOhms
  • Operating Current
    1600 to 1800 mA
  • Package Type
    Butterfly
  • Package
    14-Pin

Temperature

  • Chip Operating Temperature
    5 to 40 Degree C
  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Applications

  • Application
    Fiber sensors, instrumentation, spectroscopy

Connections & Interface

  • Connector
    FC/APC
