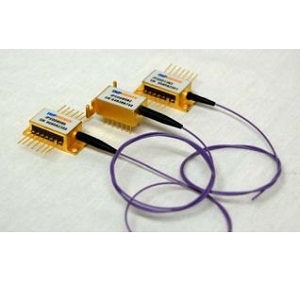

IPSDD1005

Superluminescent Diode by InPhenix
90 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to InPhenix.

The IPSDD1005 from InPhenix is a Superluminescent Diode with Wavelength 1010 to 1030 nm, Output Power 5 to 7 mW, Bandwidth (FWHM) 50 to 60 nm, Forward Current 300 mA(Max Current), Operating Current 150 to 250 mA. More details for IPSDD1005 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IPSDD1005
  • Manufacturer
    InPhenix
  • Description
    Super-Luminescent Light Emitting Diode Device

Fiber Parameters

  • Fiber Mode
    SMF/PMF/MMF
  • Fiber Jacket
    250µm tight buffer with 900µm loose tube

General Parameters

  • Type
    Fiber-Coupled SLED
  • Wavelength
    1010 to 1030 nm
  • Center Wavelength
    1020 nm
  • Output Power
    5 to 7 mW
  • Bandwidth (FWHM)
    50 to 60 nm
  • Forward Current
    300 mA(Max Current)
  • Lead Soldering Time
    10 sec
  • Spectral Modulation
    0.1 to 0.2 dB
  • TEC Current
    1.5 A
  • TEC Voltage
    3.6 V
  • Thermistor Resistance
    10 kOhms
  • Operating Current
    150 to 250 mA
  • Package Type
    Butterfly, DIL
  • Package
    8-Pin, 14-Pin

Temperature

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -20 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Applications

  • Application
    Broadband Light Source, Fiber Optic Sensor (FOS) Systems, Biomedical Imaging Device, Optical Coherence Tomography (OCT)
