IPSDT0901

Superluminescent Diode by InPhenix
90 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to InPhenix.

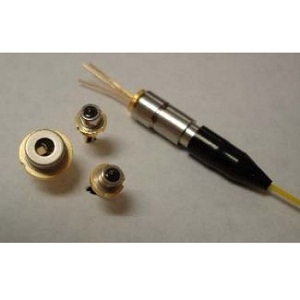

The IPSDT0901 from InPhenix is a Superluminescent Diode with Wavelength 890 to 910 nm, Output Power 30 to 35 mW, Bandwidth (FWHM) 12 to 15 nm, Operating Current 200 to 300 mA. More details for IPSDT0901 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IPSDT0901
  • Manufacturer
    InPhenix
  • Description
    Super-Luminescent Light Emitting Diode (SLD)

Fiber Parameters

  • Fiber Mode
    SMF
  • Fiber Pigtail Length
    0.5 m

General Parameters

  • Type
    Free Space SLED
  • Wavelength
    890 to 910 nm
  • Center Wavelength
    900 nm
  • Output Power
    30 to 35 mW
  • Bandwidth (FWHM)
    12 to 15 nm
  • Beam Divergence Parallel
    10 to 25 Degree
  • Beam Divergence Perpendicular
    35 to 45 Degree
  • Cooling Method
    Uncooled & Cooled
  • Spectral Modulation
    0.2 to 0.5 dB
  • Operating Current
    200 to 300 mA
  • Package Type
    TO-Can
  • Package
    TO 8 or 9 Ex-Window

Applications

  • Application
    Medical diagnostic systems, Optical Fiber sensor systems, Illumination
